Barton Marine

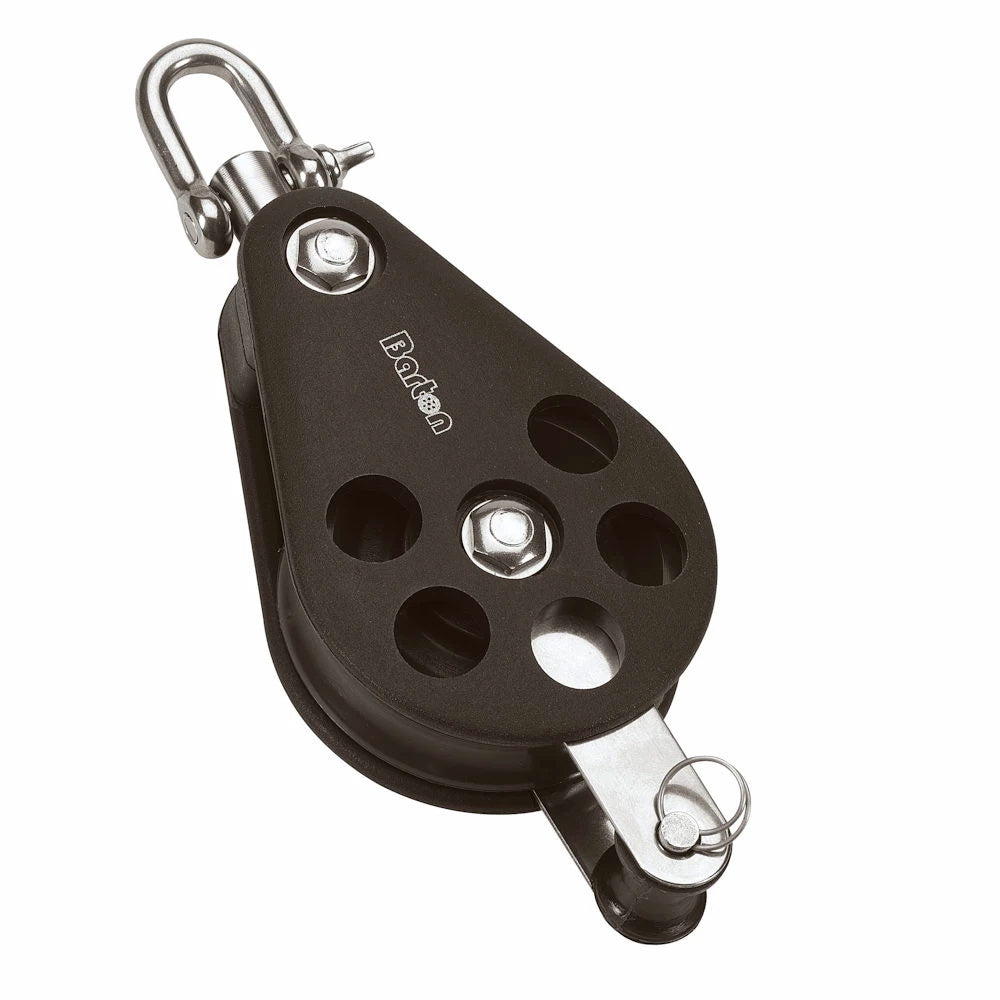

Barton Size 5 Plain Bearing Pulley Block Single Swivel Becket
Barton Size 5 Plain Bearing Pulley Block Single Swivel Becket
Regular price
$64.65 USD
Regular price
$71.83 USD
Sale price
$64.65 USD
Unit price
/
per
Tax included.
Couldn't load pickup availability
Size 5 54mm Plain Bearing Pulley Block Single Swivel & Becket
Barton Size 5 Plain Bearing Pulley Block is designed to provide smooth and dependable line handling for sailboats and marine rigging systems. The Barton Size 5 Plain Bearing Pulley Block helps sailors manage sheets, control lines, and rigging loads while maintaining reliable movement through the pulley system.
This marine pulley block features a durable fifty four millimeter sheave designed for use with plain bearing systems that allow lines to run smoothly under load. The Barton Size 5 Plain Bearing Pulley Block includes a single swivel head with an integrated becket, making it well suited for a variety of sailing and rigging applications.
The swivel design allows the block to rotate freely and align with the direction of load, helping reduce friction and improve line efficiency during operation. This feature is especially useful when managing control lines that change direction or experience varying tension while sailing.
Constructed using strong marine grade materials, the Barton Size 5 Plain Bearing Pulley Block is built to withstand harsh marine environments including saltwater exposure, vibration, and repeated line movement. The durable construction helps ensure reliable performance and long service life.
For sailors looking for dependable rigging hardware, the Barton Size 5 Plain Bearing Pulley Block offers smooth operation, flexible mounting options, and reliable performance for a wide range of sailboat rigging systems.
Barton Size 5 Plain Bearing Pulley Block with single swivel and becket designed for smooth sailboat rigging and line control.
Suitable for up to 12mm 7/16" rope.
Specifications:
- Weight: 220 g
- Dimensions: 150 × 58 × 37 mm
- Size: 5 (54MM)
- Block Type: Swivel + Becket
- No. of Sheaves: Single
- Bearing Type: Plain
- Sheave Size: 54mm x 17mm (2 1/8" x 5/8")
- Max rope diameter: 12mm (7/16")
- SWL: 750kg (1650lbs)
- Break load: 1500kg (3300lbs)
- Max rolling load (ball bearing blocks): 525kg (1157lbs)
