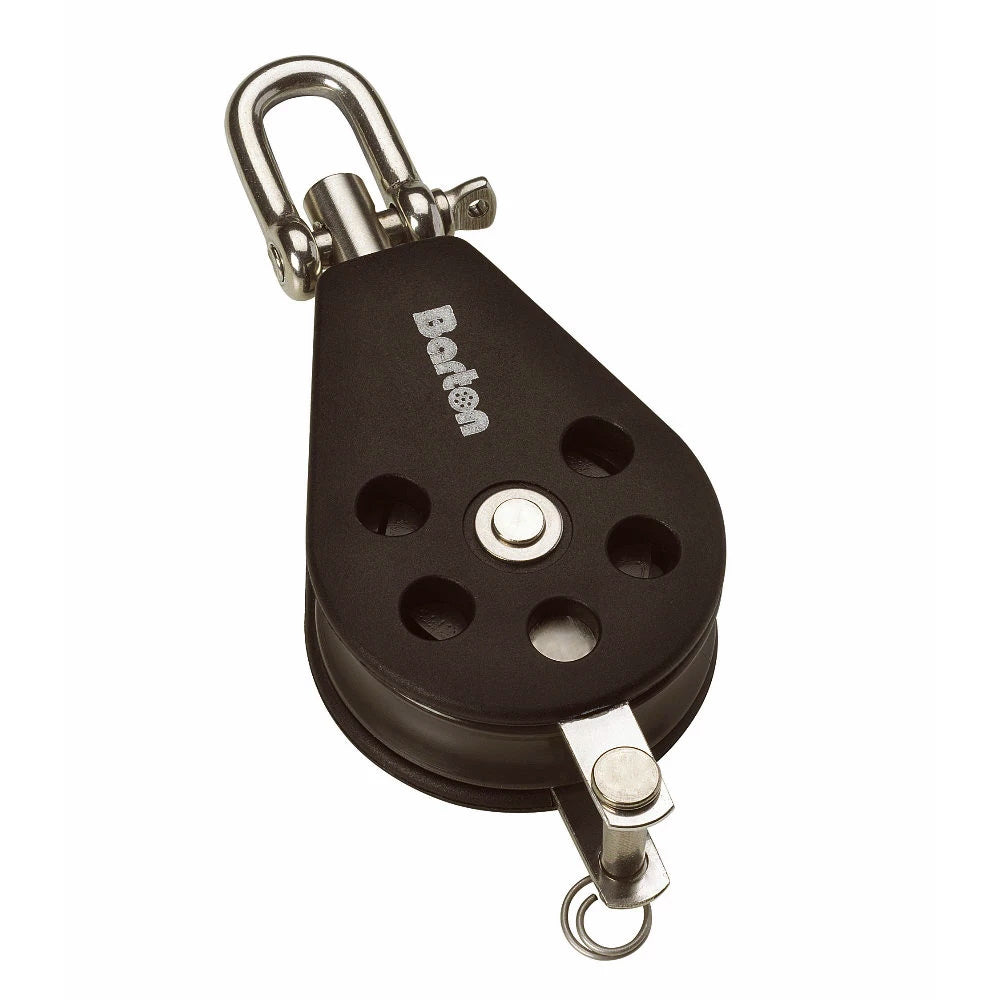

Barton Size 2 Plain Bearing Pulley Block Single Swivel Becket

Barton Size 2 Plain Bearing Pulley Block is designed to provide smooth and reliable line handling for sailboats and marine rigging systems. This compact rigging block is commonly used in sailing applications where dependable pulley movement and efficient load handling are required.

This marine pulley block features a thirty five millimeter sheave that allows lines to run smoothly through the block while maintaining consistent load performance. The Barton Size 2 Plain Bearing Pulley Block includes a single swivel head with an integrated becket, allowing flexible rigging configurations and improved line control during sailing operations.

The swivel design allows the block to rotate freely so the pulley aligns with the direction of load. This helps reduce friction and improves the efficiency of control lines such as sheets, vangs, and other sailboat rigging systems.

Constructed with durable marine grade materials, the Barton Size 2 Plain Bearing Pulley Block is built to withstand demanding marine environments including saltwater exposure, vibration, and repeated line movement. The Barton Size 2 Plain Bearing Pulley Block provides dependable performance and long service life for a wide range of sailboat rigging applications.

Suitable for up to 8mm (5/16") rope.

Specifications:

• Weight: 60 g
• Dimensions: 93 × 38 × 24 mm
• Size: 2 (35MM)
• Block Type: Swivel + Becket
• No. of Sheaves: Single
• Bearing Type: Plain
• Sheave Size: 35mm x 11mm (1 3/8" x 15/32")
• Max rope diameter: 8mm (5/16")
• SWL: 370kg (815lbs)
• Break load: 740kg (1630lbs)
• Max rolling load (ball bearing blocks): 260kg (573lbs)
