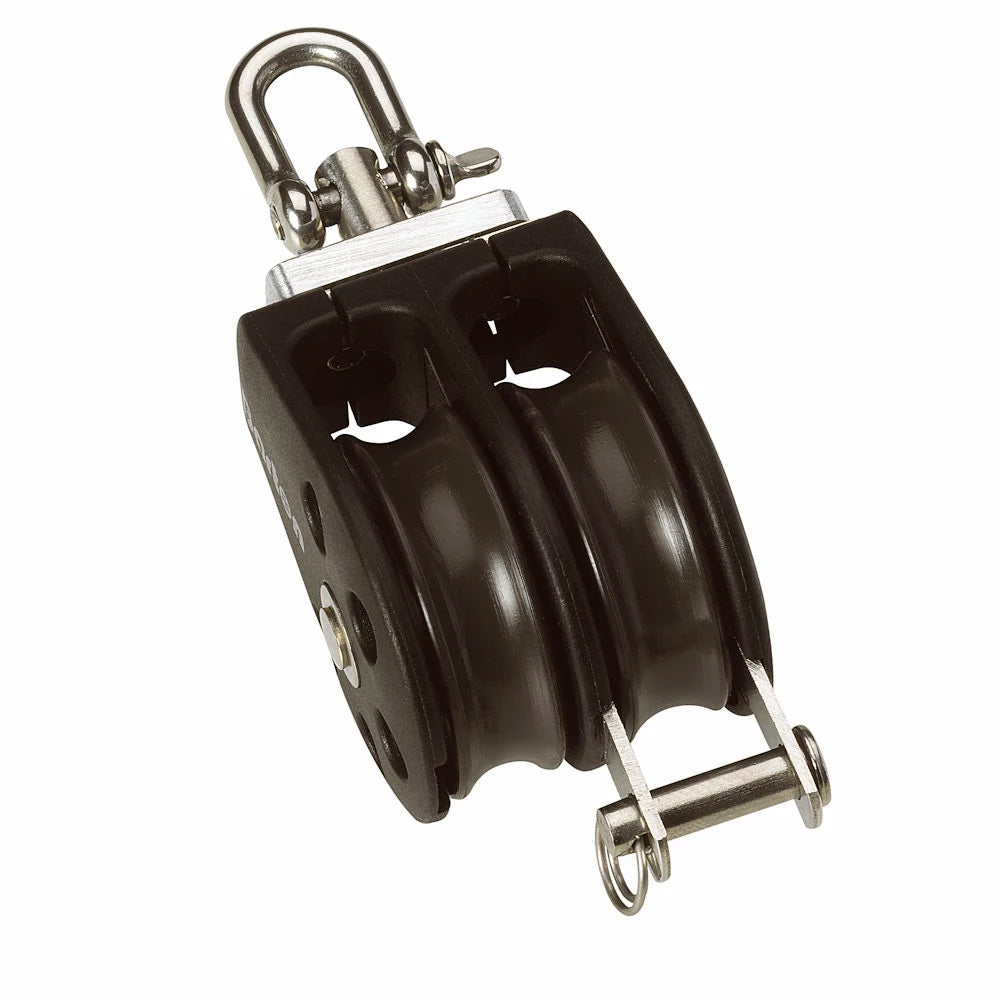

Barton Size 2 Plain Bearing Pulley Block Double Swivel Becket

Barton Size 2 Plain Bearing Pulley Block is designed to provide smooth and reliable line handling for sailing and marine rigging systems. The Barton Size 2 Plain Bearing Pulley Block is commonly used on sailboats where dependable pulley performance is required for sheets, control lines, and general rigging applications.

This marine pulley block features a durable plain bearing sheave with a thirty five millimeter diameter designed to allow lines to run smoothly while maintaining reliable load handling. The Barton Size 2 Plain Bearing Pulley Block includes a double swivel configuration with an integrated becket, allowing flexible rigging setups and improved line control during sailing operations.

Constructed using strong marine grade materials, the block is designed to withstand the demanding conditions encountered in sailing environments including saltwater exposure, vibration, and heavy line loads. The swivel head allows the block to rotate freely, helping align the pulley with the direction of load for improved efficiency.

The Barton Size 2 Plain Bearing Pulley Block is commonly used on small to medium sailing vessels where compact size and dependable performance are essential. Sailors rely on this style of block for applications such as mainsheet systems, control lines, and deck rigging where consistent performance is required.

For sailors seeking a durable and reliable rigging component, the Barton Size 2 Plain Bearing Pulley Block offers dependable line control and long lasting performance for a wide variety of sailing applications.

Size 2 35mm Plain Bearing Pulley Block Double Swivel & Becket

The Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.

Suitable for up to 8mm (5/16") rope.

Specifications:

• Weight: 99g
• Dimensions: 100 × 39 × 38 mm
• Size: 2 (35MM)
• Block Type: Fixed Eye + Becket
• No. of Sheaves: Double
• Bearing Type: Plain
• Sheave Size: 35mm x 11mm (1 3/8" x 15/32")
• Max rope diameter: 8mm (5/16")
• SWL: 370kg (815lbs)
• Break load: 740kg (1630lbs)
• Max rolling load (ball bearing blocks): 260kg (573lbs)
