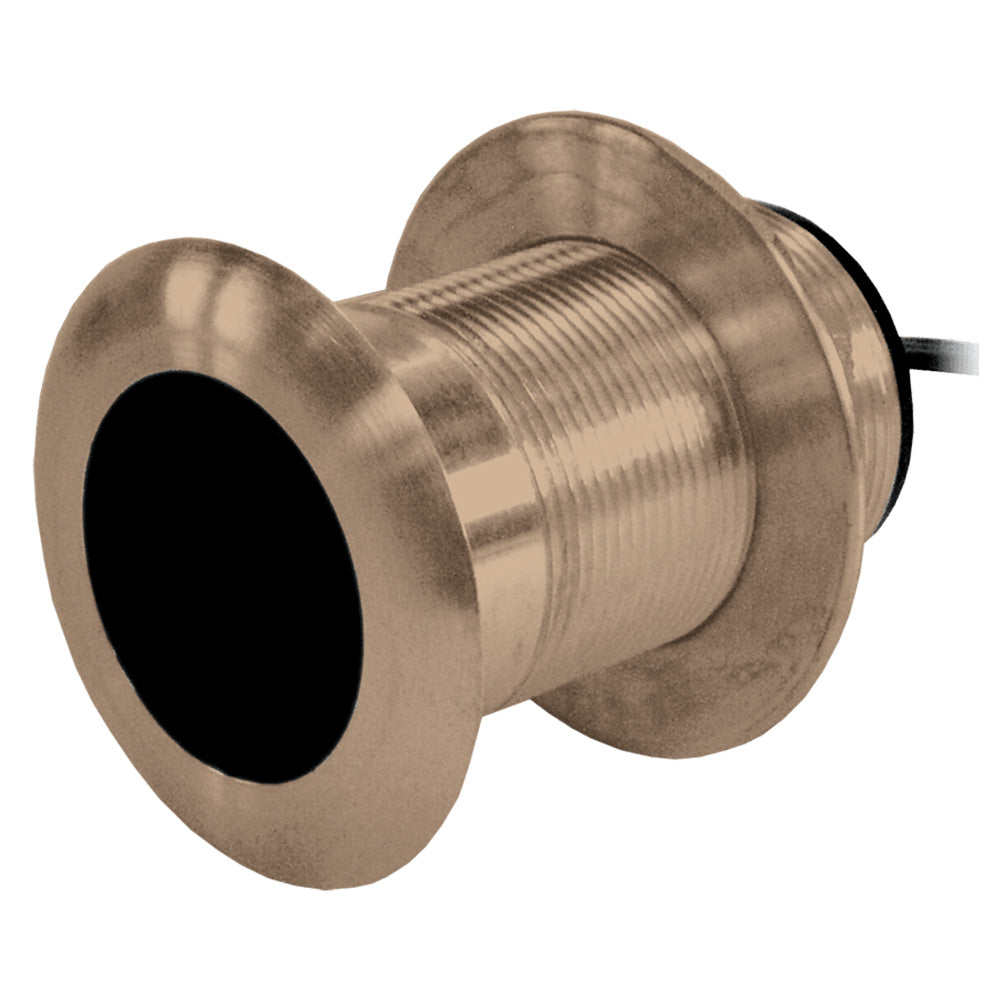

Airmar B117 Transducer 600W 50 200kHz 9 Pin Simrad

Airmar B117 transducer 600W 50 200kHz is a high-performance thru-hull sonar solution designed for accurate depth and fish detection in marine environments. This traditional CHIRP-ready transducer operates at dual frequencies of 50 and 200 kHz, providing reliable performance for both shallow and deeper water applications.

Built for compatibility with Simrad and Lowrance systems, Airmar B117 transducer 600W 50 200kHz features a 9-pin connector for seamless integration with compatible displays. It delivers consistent sonar returns, helping anglers and boaters monitor depth, bottom structure, and fish activity with confidence.

The thru-hull design ensures strong signal transmission directly through the hull, offering improved performance compared to transom-mounted options. Its durable construction is engineered to withstand harsh marine conditions, including saltwater exposure and long-term use.

Ideal for fishing and navigation, this transducer provides dependable sonar data for a wide range of vessels. It is suitable for recreational and serious anglers looking for reliable performance and clear readings.

Key Benefits

- 600W power output for strong sonar performance

- Dual frequency 50/200 kHz for versatile use

- 9-pin connector for Simrad and Lowrance compatibility

- Thru-hull design for improved signal transmission

- Durable construction for marine environments

Airmar B117 transducer 600W 50 200kHz is a reliable solution for enhancing your sonar system. Get accurate depth and fish detection with this proven marine transducer.

Features:

• Depth only or depth and temperature
• 600 W
• Dual-frequency element: 50 kHz with a wide 45° beamwidth for performance to 353 m (1,200'), 200 kHz with a 12° beamwidth for performance to 206 m (700')
• Right-angle cable exit saves space and protects the transducer if stepped on
• Included rubber washer allows tightening of the hull nut to irregular hull surfaces
• Low-profile, bronze housing has minimal drag
• Plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials and deadrise angles

Specifications:

• Weight: 0.9 kg (2.0 lb.)
• Recommended Boat Length: Up to 8 m (25')
• Hull Material: Fiberglass or wood
• Hull Deadrise: Best performance through 7°. Can accommodate up to 12°.
• Acoustic Window: Urethane
• Hole Diameter: 51 mm (2")
